Serial 4-Digit LED Display Module

Original price was: $40.00.Current price is: $20.00.

These are discontinued, New Old Stock (NOS) and once they’re gone, that’s it.

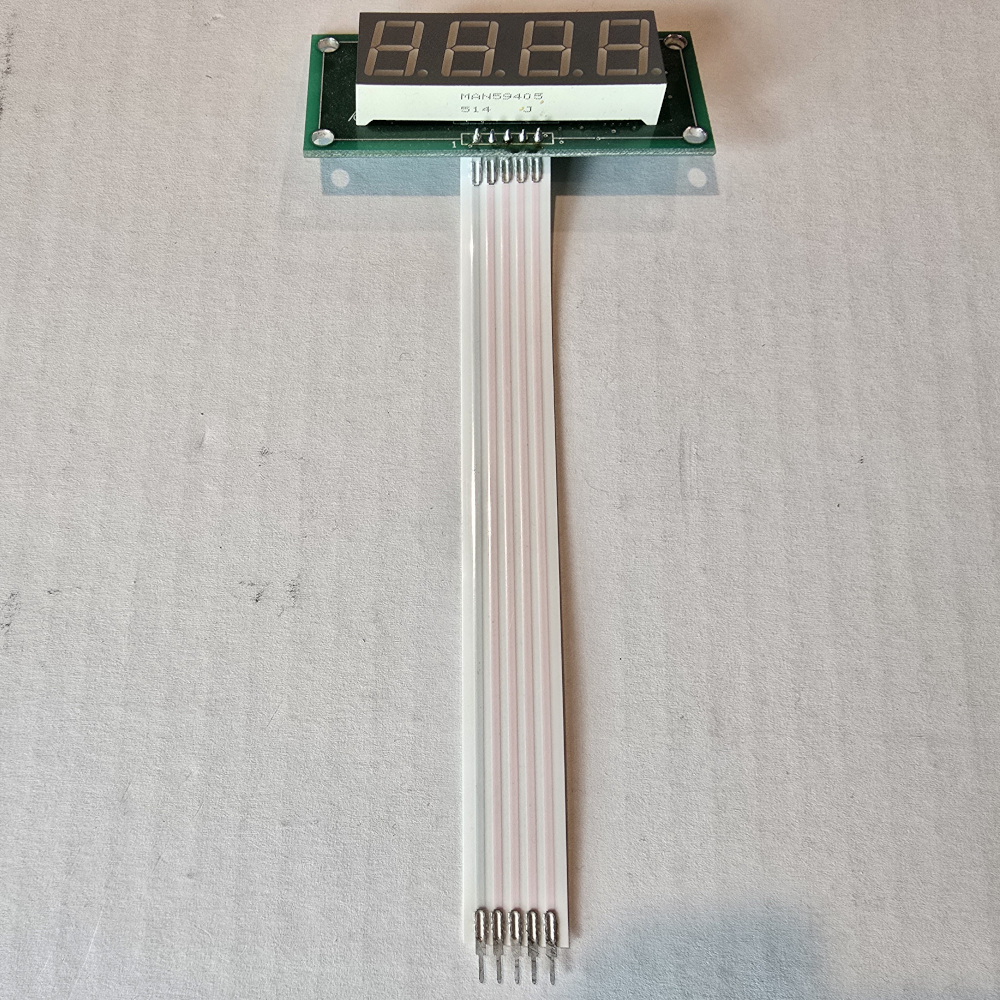

There are only two (2) of these left. One has a pin header and the other has an attached ribbon cable which could be replaced. Please specify if you have a preference.

See description below for product details.

2 in stock

SKU: SLEDC4 Category: Tag:

Description

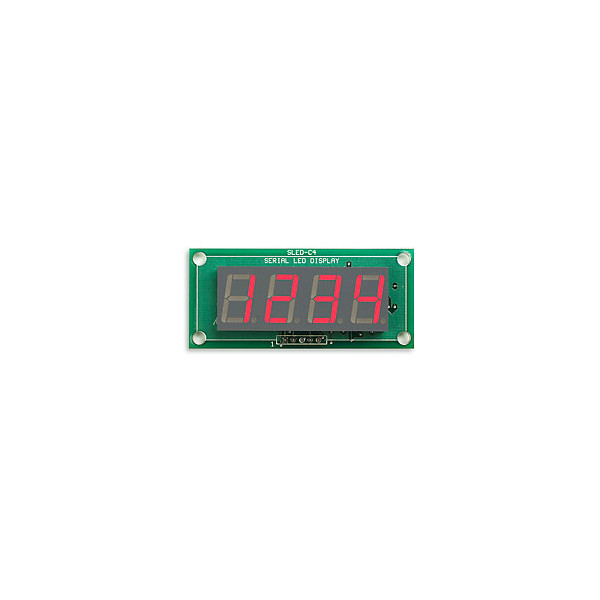

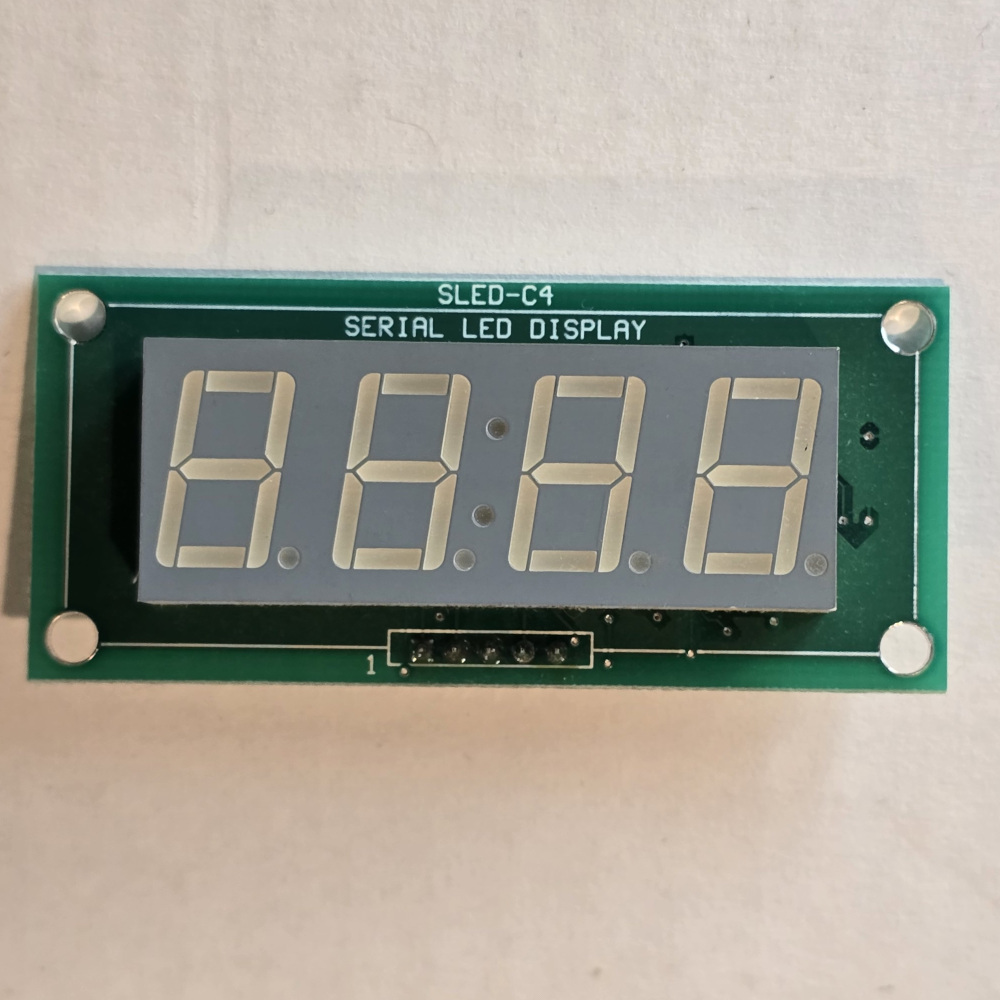

The SLED-C4 from Reynolds Electronics provides a simple asynchronous serial interface to a high contrast, four-digit, seven-segment, super red LED display module – with 6 unique built-in animations. The display can be driven with a single pin from your microcontroller.

Features:

  • 6 unique, built-in display animations for printing, scrolling, clearing digits, and other special effects
  • Flicker-free multiplexed LED display with fast response times
  • Two command modes for total control of individual LED segments
  • Animation speed control for enhanced creative freedom and custom effects
  • Stores display brightness setting in onboard non-volatile memory for automatic power-up brightness setting
  • Stores a four-digit splash screen in onboard non-volatile memory for automatic display at power-up

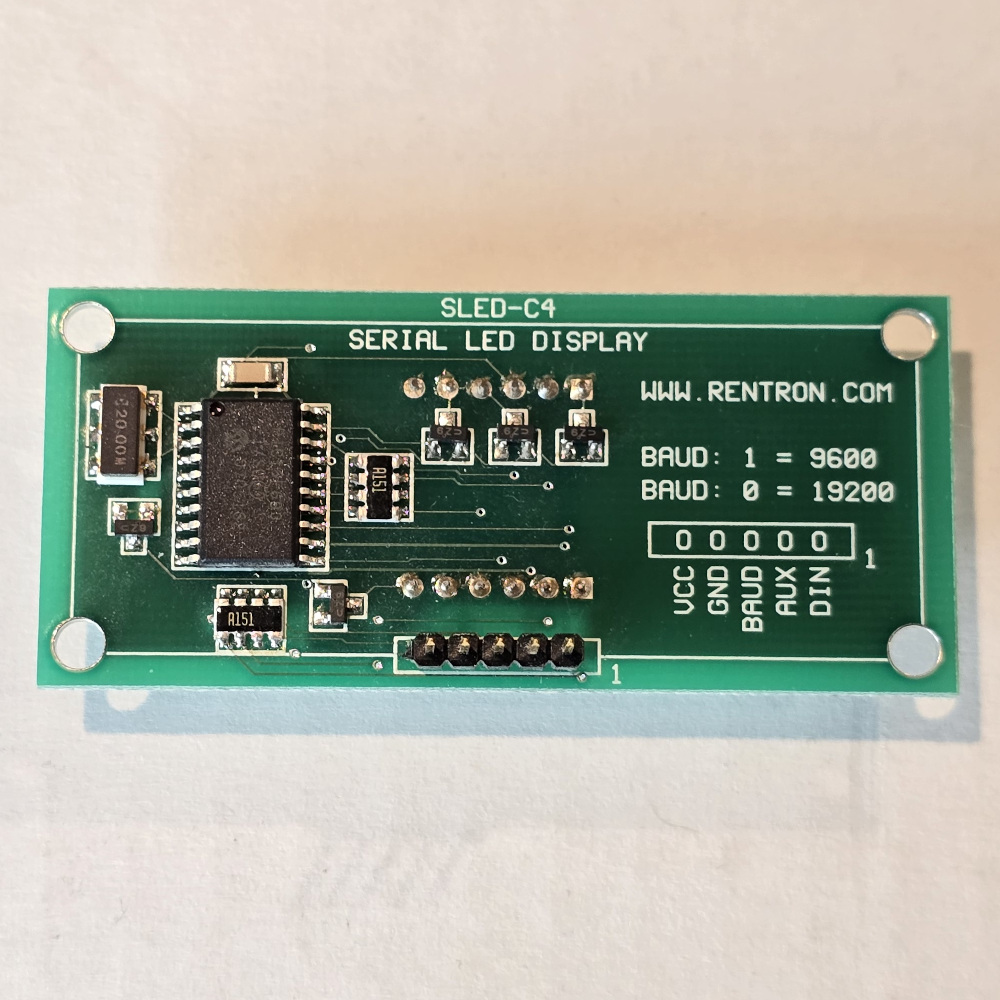

  • Simple, single-wire asynchronous serial control with pin-selectable data rates of 9600 or 19200 bps
  • Automatically refreshes and updates each display digit at ~1.2KHz
  • Low-power sleep mode current draw <100uA typical, with automatic display restore on wake-up
  • Flexible operating voltage range from 4.5 to 5.5 VDC
  • Small footprint PCB measuring only 2.4″ x 1.2″
  • 2KHz PWM brightness control with 126 levels: 0 = off, 125 = max brightness
