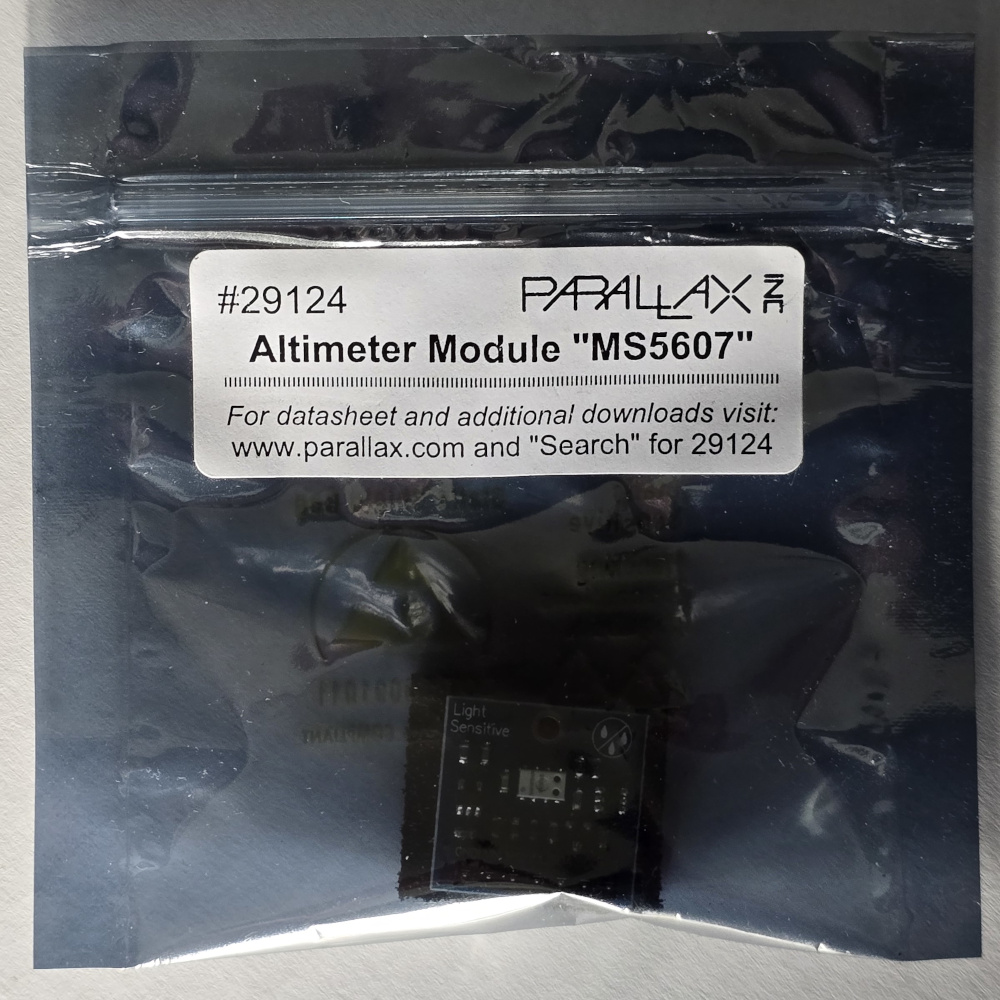

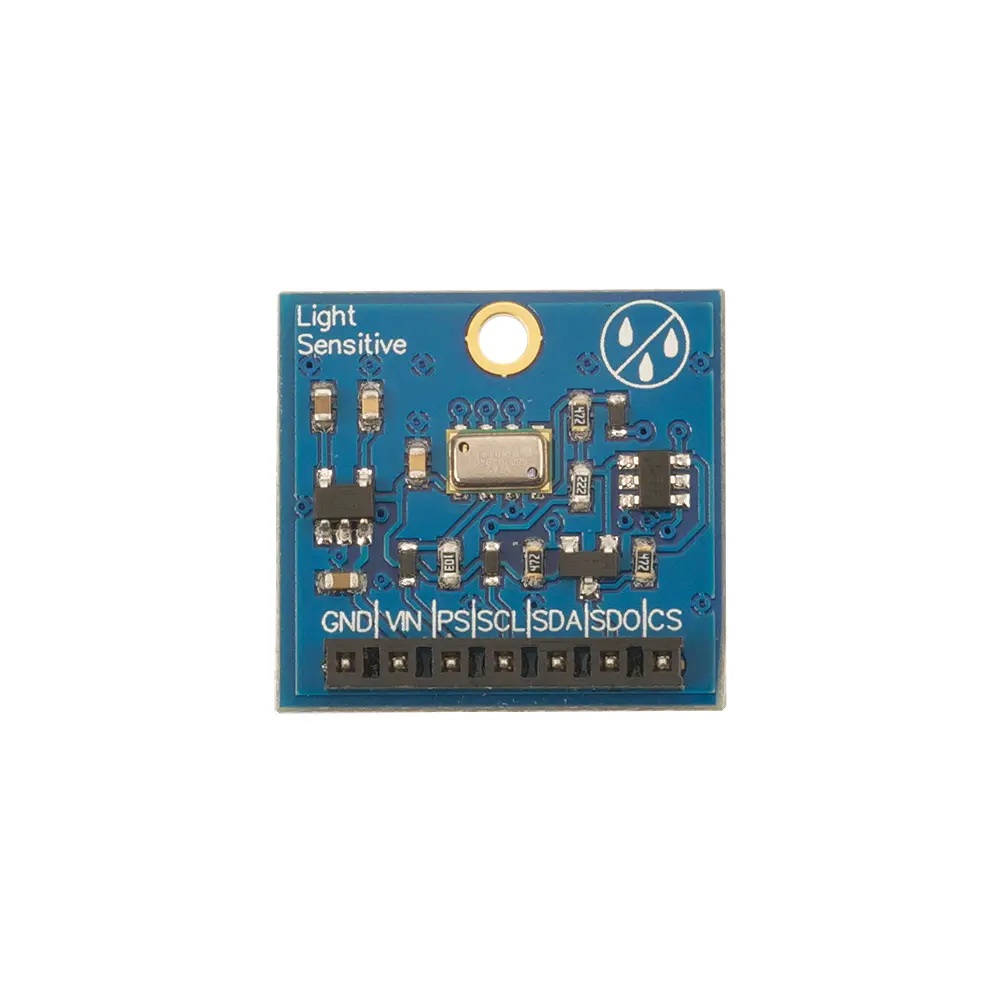

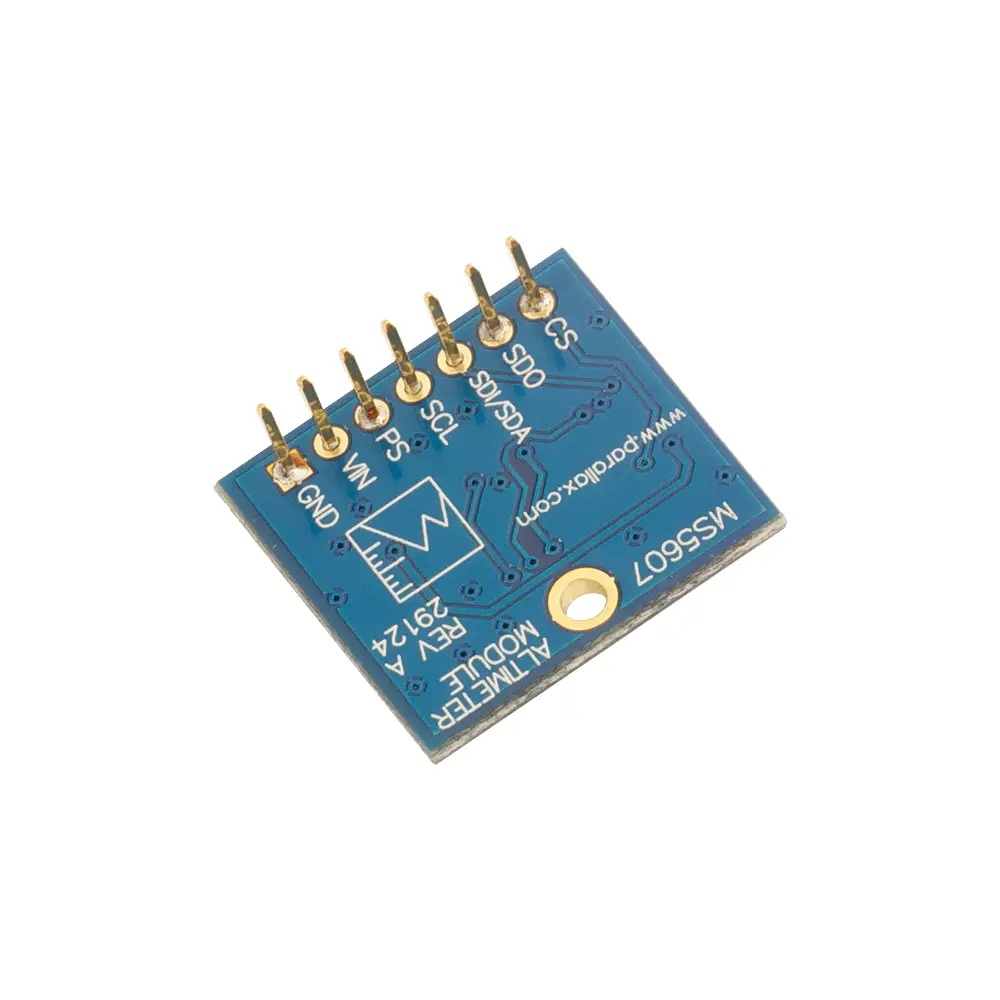

Altimeter Module MS5607

Description

The Altimeter Module MS5607 is a high resolution (20 cm) electronic altimeter sensor that gives highly accurate altitude, pressure, and temperature readings.

The module includes a high-linearity barometric pressure sensor and a high-resolution temperature output, allowing implementation of an altimeter/thermometer without any additional sensors. Different operation modes allow the user to optimize for conversion speed or current consumption. The module is designed for use with a large variety of microcontrollers with different voltage requirements. This module is well-suited for high-altitude ballooning and has been used with great success in that role.

Key Features:

24-bit pressure and temperature values

Wide pressure range

Successfully tested at 120,000 feet

Product Details:

Pressure range of 10 –1200 mbar

Thermometer of -40 to +85 °C with <.01 °C resolution

Power Requirements: 3.3 to 6.5 VDC

Current Consumption: ~1.74 mA @ 3.3 VDC

Communication Interface: I2C (up to 400 kHz) or SPI (20 MHz)

Dimensions: 0.85 X 0.80 in (2.16 X 2.03 cm)

Operating temperature: -40 to +185 °F (-40 to +85 °C)
