MEMSIC 2125 Dual-axis Accelerometer

Description

The MEMSIC 2125 is a low cost, dual-axis thermal accelerometer capable of measuring tilt, acceleration, rotation, and vibration with a range of ±3 g. For integration into existing applications, the MEMSIC 2125 is electrically compatible with other popular accelerometers.

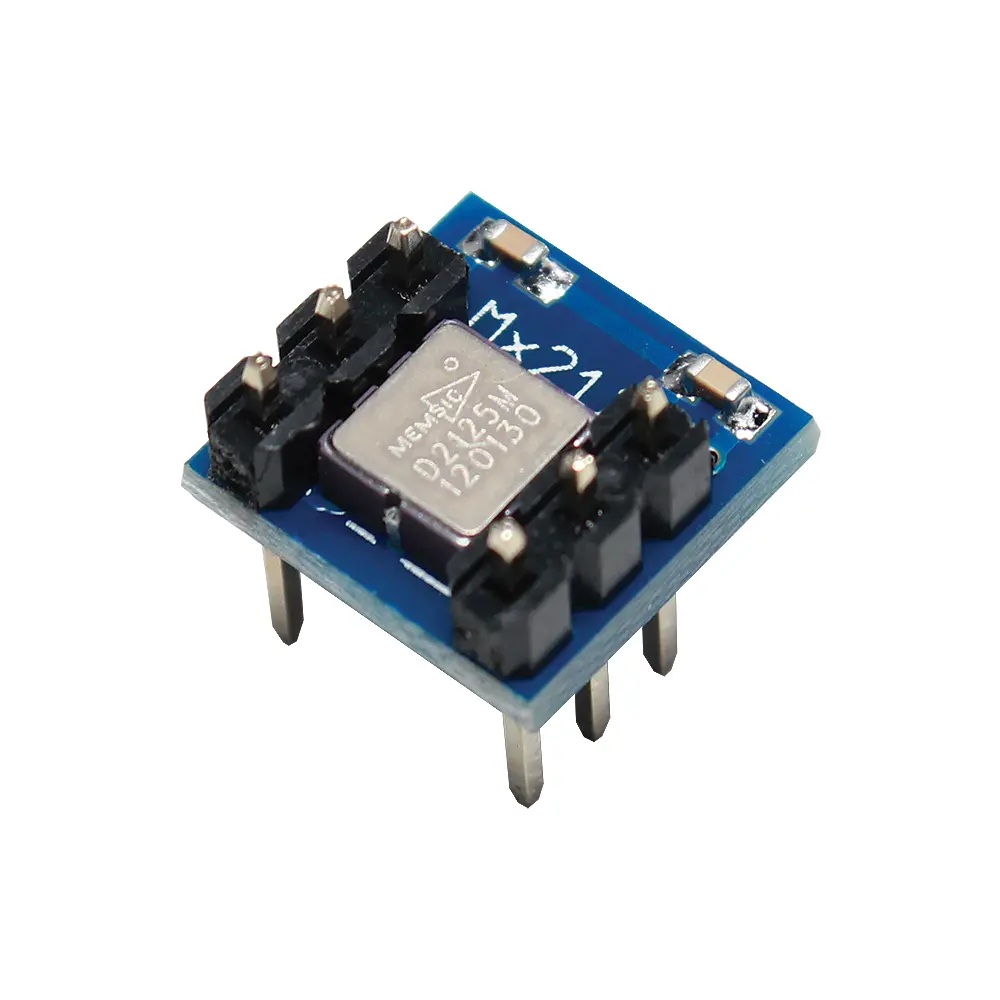

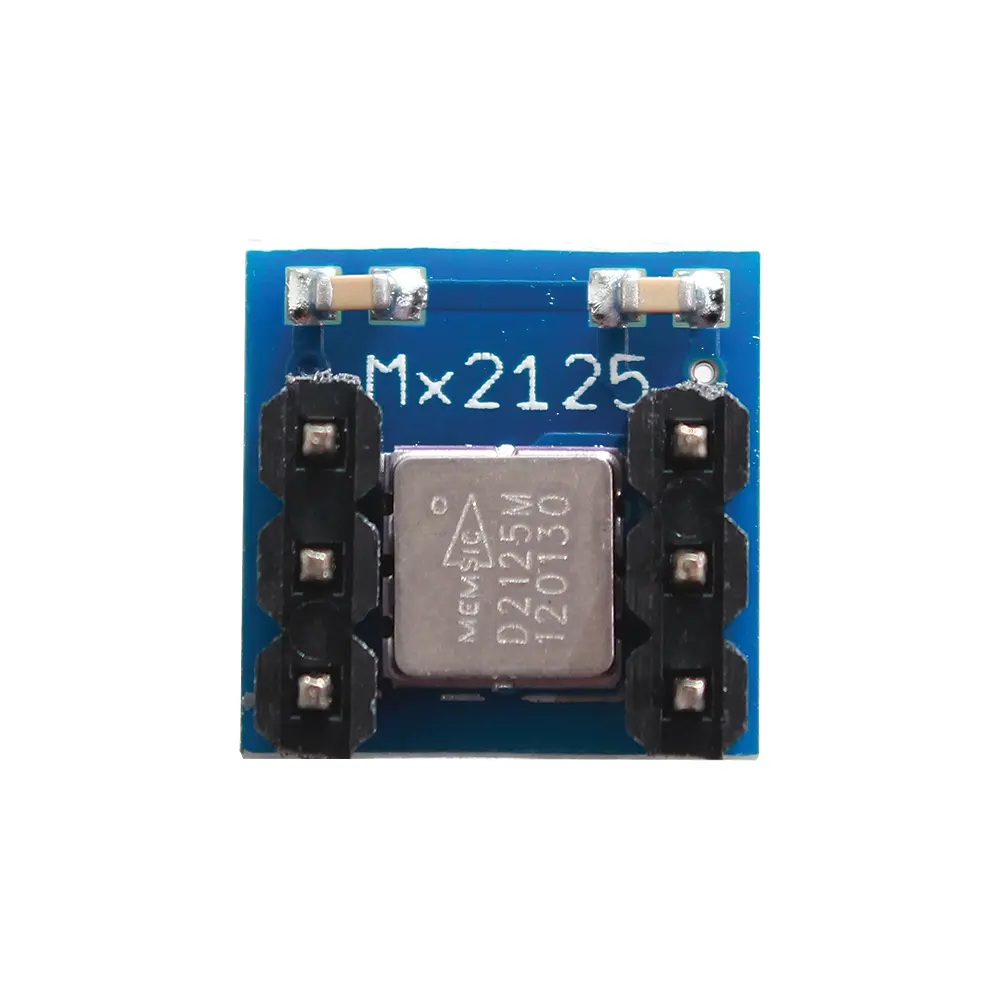

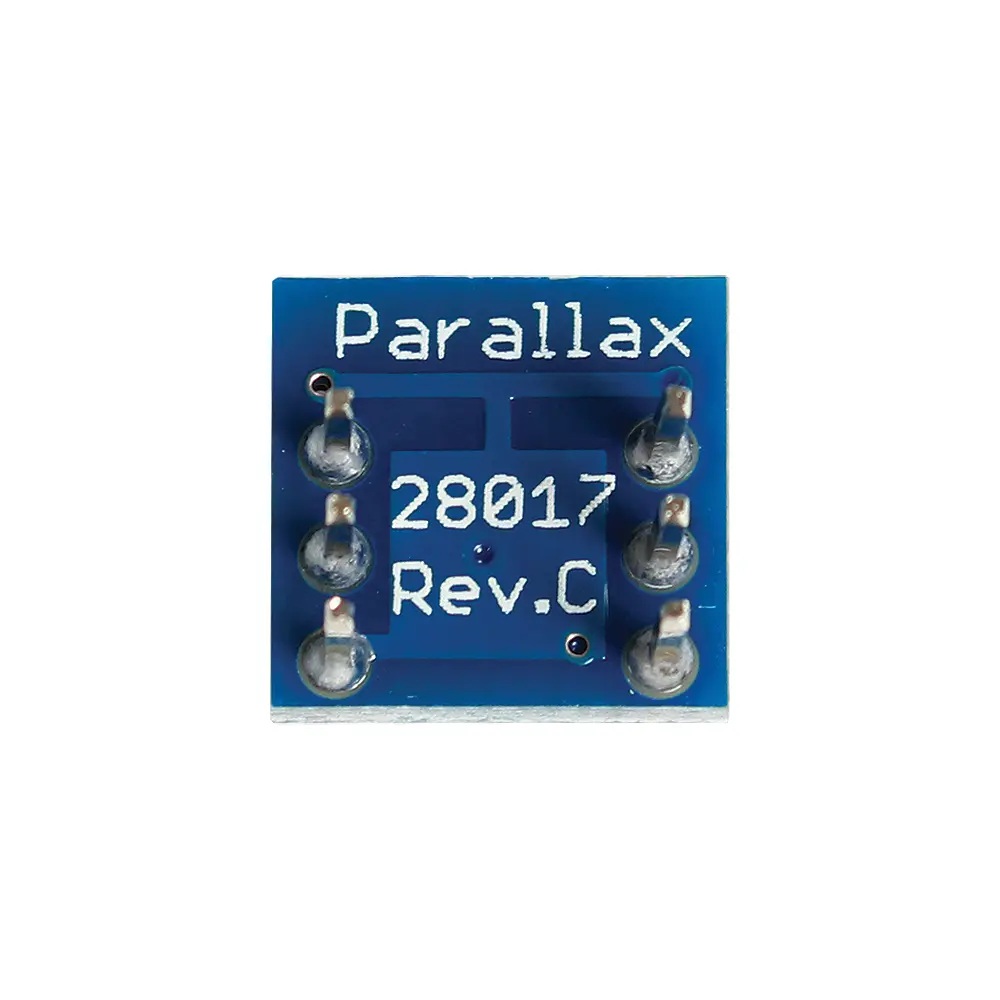

MEMSIC provides the 2125 in a surface-mount format. Parallax mounts the circuit on a small PCB, providing all I/O connections so it can easily be inserted on a breadboard or through-hole prototype area.

Features:

Measures ±3 g on each axis, enough for data for a wide variety of applications

Simple pulse output of g-force for each axis is easy to read for most any microcontroller

Convenient 6-pin 0.1″ spacing DIP module fits into a standard breadboard or through-hole board

Analog output of temperature (Tout pin) allows for fine-tuning of advanced applications

Low current at 3.3 or 5 V operation (less than 4 mA at 5 VDC) puts low demand on your system

Specifications:

Power requirements: +3.3 to +5 VDC

Communication: TTL/CMOS compatible 100 Hz PWM output signal with duty cycle proportional to acceleration

Dimensions: 0.42 x 0.42 x 0.45 in (10.7 x 10.7 x 11.8 mm)

Operating temp range: 32 to +158 °F (0 to +70 °C)
